Nitric Oxide
Product origin: China
Delivery time: About 30days after down payment
机翻 · 通用领域
1. Ultra high purity: The unique purification process of high-purity nitric oxide removes homologues and key impurities such as nitrogen dioxide, avoiding side reactions and ensuring stable adaptation to continuous production and precision research.
2. Professional packaging: Special inner wall gas cylinders reduce decomposition and aggregation, and multi specification steel cylinders are matched with screening valve ports to ensure compatibility and safety.
3. Targeted application solution: High purity nitric oxide can be customized with specific carrier gases (such as nitrogen) for mixed gas services according to needs.
Nitric oxide (NO) gas
INDEX
| NO | Name | Chemical formula | Purity(%) | Pressure(Mpa) | Valve|male outlet connection | Cylinder volume (L) | Cylinder Size (cm) | Cylinder tare weight(kg) |
| 1 | NO | NO | 99.9 | 2 ±0.5 | QF-11/CGA712 | 8/40 | 29*145 | 50 |
Package

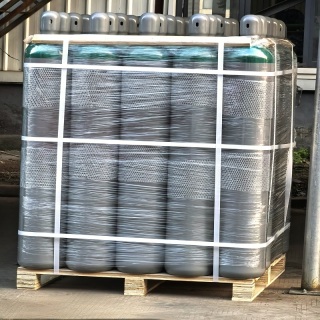

8L/40L
Main application areas
·Semiconductor and Electronics Industry:
·Chemical vapor deposition: Nitric oxide is used to deposit silicon-based thin films in TFT-LCD manufacturing.
·Plasma etching: Nitric oxide is used as a key process gas for dry etching of specific materials.
·Solar cell manufacturing: nitric oxide is used for thin film deposition process.
·Optoelectronic industry:
·Nitric oxide is used as a doping gas or reactive gas in the preparation process of organic light-emitting diodes (OLEDs) and other devices.
·Chemical synthesis and scientific research:
·Nitric oxide is used for the synthesis of various nitrogen-containing organic compounds, pharmaceutical intermediates, and dyes.
·Nitric oxide is an important reactant gas or standard gas in the fields of catalysis, environmental science, and life sciences.
·Medical and Biological Research:
·Nitric oxide is used as a cell signaling molecule (vasodilator) in biological research for related experiments.
Safety Warning and Operating Instructions
⚠️ danger Nitric oxide is a highly toxic, oxidizing, and unstable compressed gas!
·Toxicity: Nitric oxide has strong toxicity and inhibitory effects on the central nervous system. Inhalation can cause dizziness, suffocation, and even coma and death.
·Oxidative: Nitric oxide, as a strong oxidant, may form explosive mixtures when in contact with combustibles such as hydrogen and organic vapors, posing a risk of combustion and explosion when exposed to heat or open flames.
·Instability: Nitric oxide is easily oxidized in the air to produce highly toxic and corrosive nitrogen dioxide, visible as brownish red smoke.
The operation must comply with the following regulations:
1. Storage: Nitric oxide is stored in a cool, well ventilated gas warehouse with a dedicated non combustible material structure. Stay away from sources of fire, heat, and flammable materials. The storage temperature should not exceed 30 ℃. Avoid mixing storage with reducing agents, halogens, etc.
2. Operation: Operators must undergo professional training and hold a special operation certificate. When using explosion-proof tools, the system must undergo strict leak detection. The workplace must be equipped with nitric oxide/nitrogen dioxide concentration detection alarms.
3. Leakage treatment: In the event of a leakage of nitric oxide, personnel in the contaminated area should be quickly evacuated to a upwind location and immediately isolated. Emergency responders must wear self-contained positive pressure respirators and fully enclosed protective clothing. Cut off the gas source, spray water to dilute and dissolve, but do not let water directly enter the steel cylinder. Constructing embankments or digging pits to contain large amounts of wastewater generated.
4. Personal protection: When entering areas where high concentration gases may be present, it is necessary to wear a positive pressure air respirator. It is recommended to wear anti-static protective clothing.
