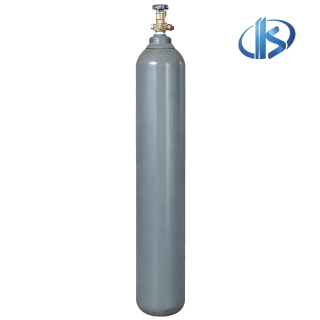

Argon Cylinder
Argon seamless steel cylinder with Valve Guard/protection Valve High Pressure Bottle 20 MPa Gas Purity 99.99% 10L/20L/50L
- China
- About 30days after down payment
- Information
Argon seamless steel cylinder with Valve Guard/protection Valve High Pressure Bottle 20 MPa Gas Purity 99.99% 10L/20L/50L
Main Technical Data：
Nominal Volume：50L Nominal working pressure：200Bar
Nominal Diamater：232mm Hydrostatic Test pressure：300Bar
Min Design Wall Thickness：5.4mm Leakage Test Pressure：200Bar
Filling gas：Argon and so on Accessories：Valve/cap/handle
Use：Medical/Industrial/Beverage gas
ISO9809-3 Standard Gas Cylinders | ||||||||
| Type | Outside Diameter (mm) | Water Capacity (L) | Height (Without Valve) | Weight (Without Valve/Cap) (kg) | Service Pressure (Bar) | Test Pressure (Bar) | Design Wall Thickness (mm) | Material |
| ISO219-4-15 | 140 | 4 | 460 | 8.2 | 150 | 250 | 3.6 | 37Mn |
| ISO219-10-15 | 152 | 10 | 710 | 13.6 | 4.0 | |||
| ISO219-15-15 | 152 | 15 | 1020 | 18.6 | 4.0 | |||
| ISO219-20-15 | 219 | 20 | 700 | 28 | 5.7 | |||
| ISO219-40-15 | 219 | 40 | 1315 | 48 | 5.7 | |||
| ISO219-47-15 | 232 | 47 | 1370 | 55 | 6.0 | |||
| ISO219-50-15 | 232 | 50 | 1460 | 58 | 6.0 | |||
| ISO219-50-20 | 232 | 50 | 1450 | 56 | 200 | 300 | 5.8 | |
| ISO219-50-23 | 232 | 50 | 1450 | 56 | 230 | 345 | 5.8 | 34CrMo4 |
Our advantage
1. Reply in 24 hours.
3. Every cylinder will be tested before the delivery.
4. Delivery on time and excellent after-sales service.
5. High quality, reliable price.
Argon Cylinder: High Purity Gas Storage for Industrial Use
Introduction
Are you in need of high-quality and reliable argon storage for your industrial processes? Look no further than the Argon Cylinder! This high-pressure bottle provides a safe and efficient way to store high-purity argon gas, with a 99.99% purity level and a 6m3 customized capacity at 150 Bar.
Product Features
The Argon Cylinder is designed with the following features:
Valve Guard/Protection Valve: Ensures safety during transportation and storage, with added protection against accidental damage
Seamless Construction: Eliminates the risk of leaks, ensuring maximum efficiency and reliability
Customized Capacity: The 6m3 bottle can be filled to a high pressure of 150 Bar for optimal performance
High Purity Gas: Argon gas purity level of 99.99% for efficient industrial processes
Large Capacity: The 40L size makes it ideal for large industrial processes
Specifications
Product Title: Argon Cylinder
Keywords: Argon Cylinder, High Purity Argon Cylinder, High-Pressure Argon Cylinder, Argon Gas Cylinder, Seamless Argon Cylinder
Pressure: 15MPA
Gas Purity: 99.99%
Cylinder Size: 10L/20L/50L
How It Works
The Argon Cylinder provides a safe and efficient way to store argon gas for industrial processes. Simply load the cylinder with high-purity argon through the valve and store it in a safe, dry location. When needed, attach the cylinder to your industrial process equipment and release the gas at the desired pressure level.
FAQ
Q: What is the purity level of the argon gas in the cylinder? A: The Argon Cylinder contains high-purity argon gas with a level of 99.99%.
Q: How much argon gas can the cylinder hold? A: The Argon Cylinder has a customized capacity of 6m3 and a cylinder size of 40L.
Q: Is the cylinder safe for transportation and storage? A: Yes, the Argon Cylinder is designed with a Valve Guard/Protection Valve for added protection against accidental damage.
